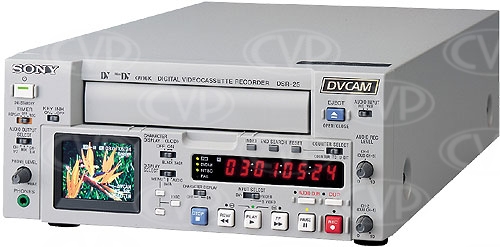

MAGNETOSCOPE DVCAM DSR25

Lecteur enregistreur DV/DVCAM avec écran de visualisation en facade.




GENERAL

Power requirements AC 100 V to 240 V, 50/60 Hz Power consumption 16 W
Weight 9 lb 8 oz (4.3 kg) Dimensions (W x H x D) 8 3/8 x 3 7/8 x 15 1/2 inches (212 x 98 x 392.8 mm)
Tape speed Approx. 28.2 mm/s (DVCAM mode), Approx. 18.8 mm/s (DV SP mode)


VIDEO

Video system 525/60 (NTSC), 625/50 (PAL) (switchable)
Rec mode DVCAM/DV (SP mode only)
Playback mode DVCAM/DV (SP mode only)

AUDIO

Rec mode 2CH mode (48 kHz/16-bit) / 4CH* mode (32 kHz/12-bit) / automatic (DV IN) (*Only 2 channels can be recorded simultaneously)
Playback mode (automatically selected) 2CH mode (48 kHz/16-bit) / 4CH mode (32 kHz/12-bit)
2CH mode (32 kHz/16-bit) / 2CH mode (44.1 kHz/16-bit)

INPUT SIGNALS

- vidéo: (ANALOG) Composite: BNC (x1)
1.0 Vp-p, 75 ?, sync negative
S-Video: DIN 4-pin (x1)
Y: 1.0 Vp-p, 75 ?, sync negative
C: 0.286 Vp-p, (subcarrier burst) 75 ? (in NTSC mode)
C: 0.3 Vp-p, (subcarrier burst) 75 ? (in PAL mode)
- audio : (ANALOG) Audio: PIN jack (x2)
-10/-2/+4 dBu (full bit -20 dB)

OUTPUT SIGNALS

- video : (ANALOG) Composite: BNC (x1)
1.0 Vp-p, 75 ?, sync negative
S-Video: DIN 4-pin (x1)
Y: 1.0 Vp-p, 75 ?, sync negative
C: 0.286 Vp-p, (subcarrier burst) 75 ? (in NTSC mode)
C: 0.3 Vp-p, (subcarrier burst) 75 ? (in PAL mode)
- audio: (ANALOG) Audio: PIN jack (x2)
2 Vrms (full bit)
Headphone: Stereo mini jack (x1)


i.LINK (DV In/Out): IEEE 1394 based ( 4-pin x1)

Color LCD monitor 2-inch type, 123,200 dots
LANC Stereo mini-mini jack (x1)
Control S Stereo mini jack (IN x1)
